M-2 Scout Features

Weight & Dimensions

Wingspan  9.60 m / 31.5 ft
Length overall  6.87 m / 22.5 ft
Height  2.35 m / 7.7 ft
Cabin width @ shoulder area  120 cm / 47 inch
Limit load factors  +4 g / -2 g
Maximum take-off weight  600 kg / 1320 lbs
Empty weight  320 kg / 705 lbs
Luggage  30 kg / 66 lbs
Fuel tanks volume  90 liter / 24 US gallons

Performance

Cruise speed - Vcr  140-210 km/h - 75-114 kts
Never Exceed Speed - Vne   260 km/h - 140 kts
Stall Speed (clean configuration) - Vs  81 km/h - 44 kts
Stall Speed (landing configuration) - Vso  72 km/h - 39 kts
Rate of Climb  5 m/s - 1000 fpm
Endurance (no reserve)  6 hours

Powerplant

Engine  Rotax 912 ULS
Maximum Power  74 kW / 100 HP
Fuel  Automotive unleaded gasoline - or - AVGAS 100LL
Propeller  3-blade, fixed or variable pitch

Three view

M-2 Scout, E-LSA, three view

(click on image to enlarge)

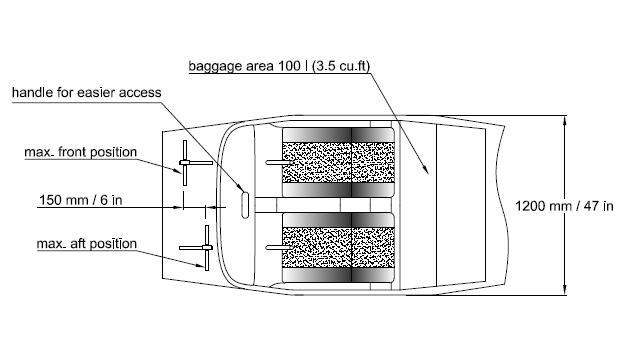

M-2 Scout cockpit arrangement

M-2 Scout cockpit arrangement

(Click on image to enlarge)
